Hot Runner Controller Thermonom
01 Channels
02 Power
03 Input

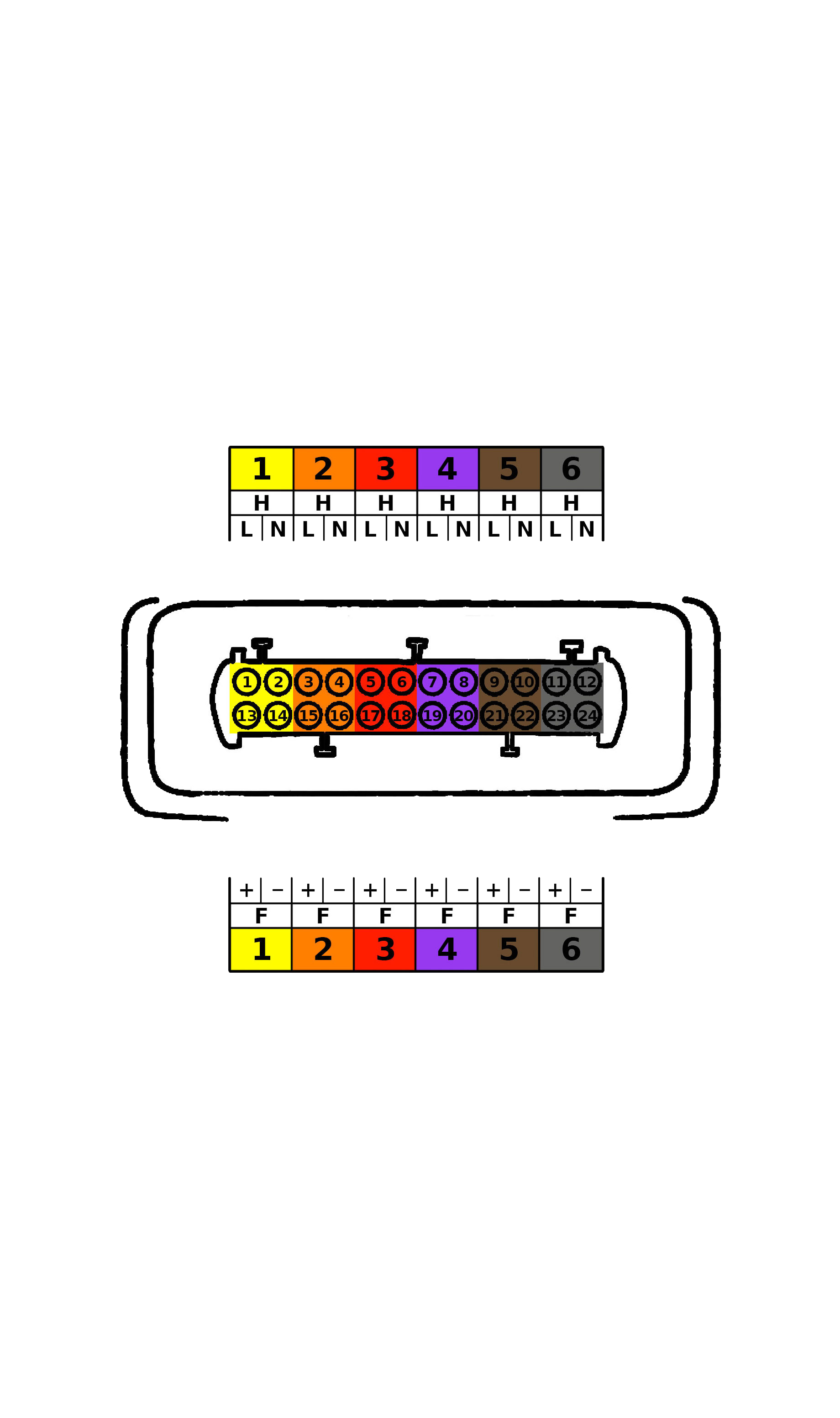

04 Pins
05 Pin assignment
06 Lever type
07 Format
08 Extras
RJ45 2. Network socket connected via switch, internet, data transfer, coupling of multiple devices, etc.
WLAN WIFI Software + USB antenna, enables the thermonome to join an existing network
RFID RFID reader set Cable + reading head + software, easy user registration and mold registration
NOT Interface for emergency stop circuit on M12 socket 4-pin
EXT External temperature compensation point to M12 socket 4 pin
STAUB Dust protection set IP 65 Covers for all connectors and seals on housing parts
OPCUA OPC UA server extension (software)

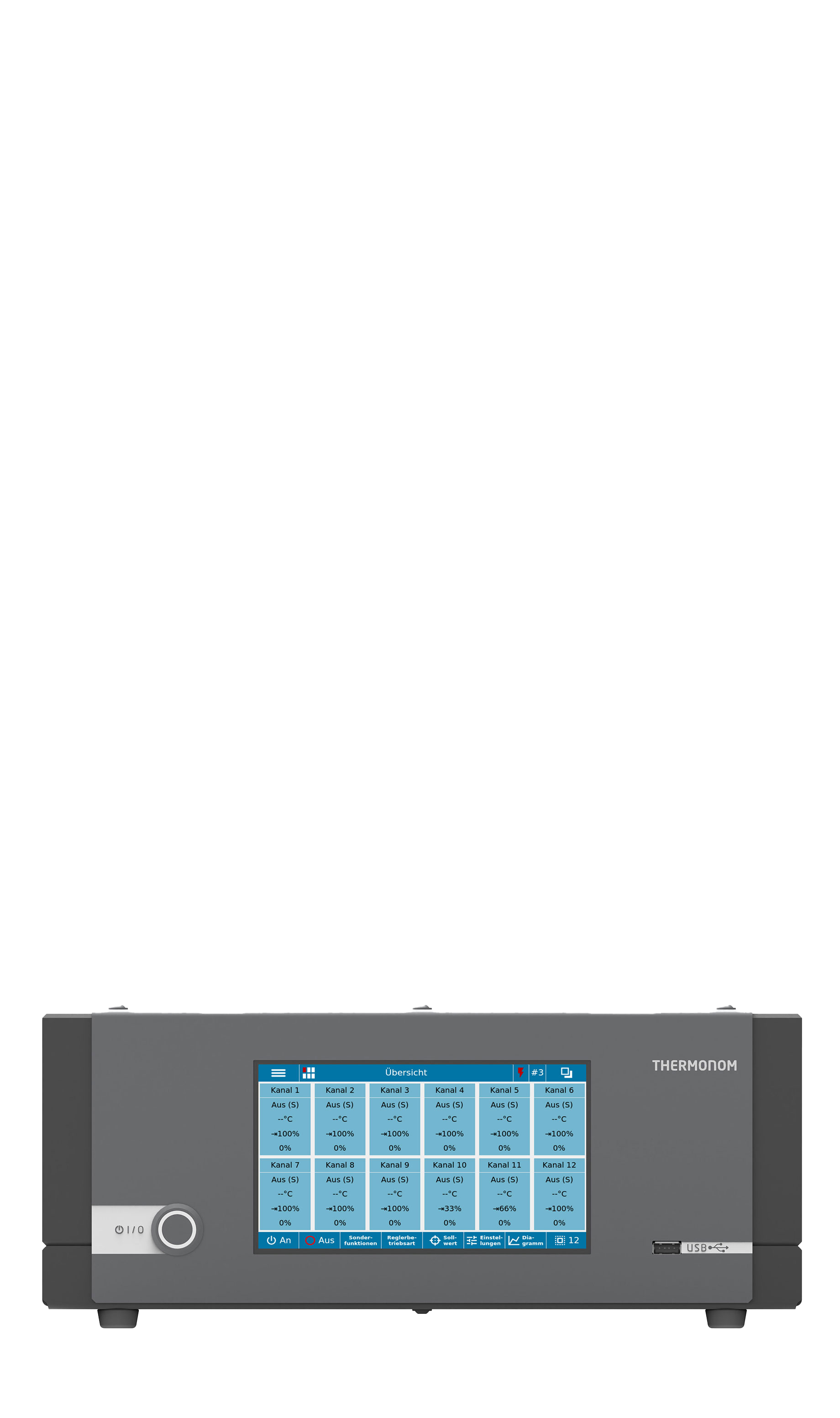

Front
Front

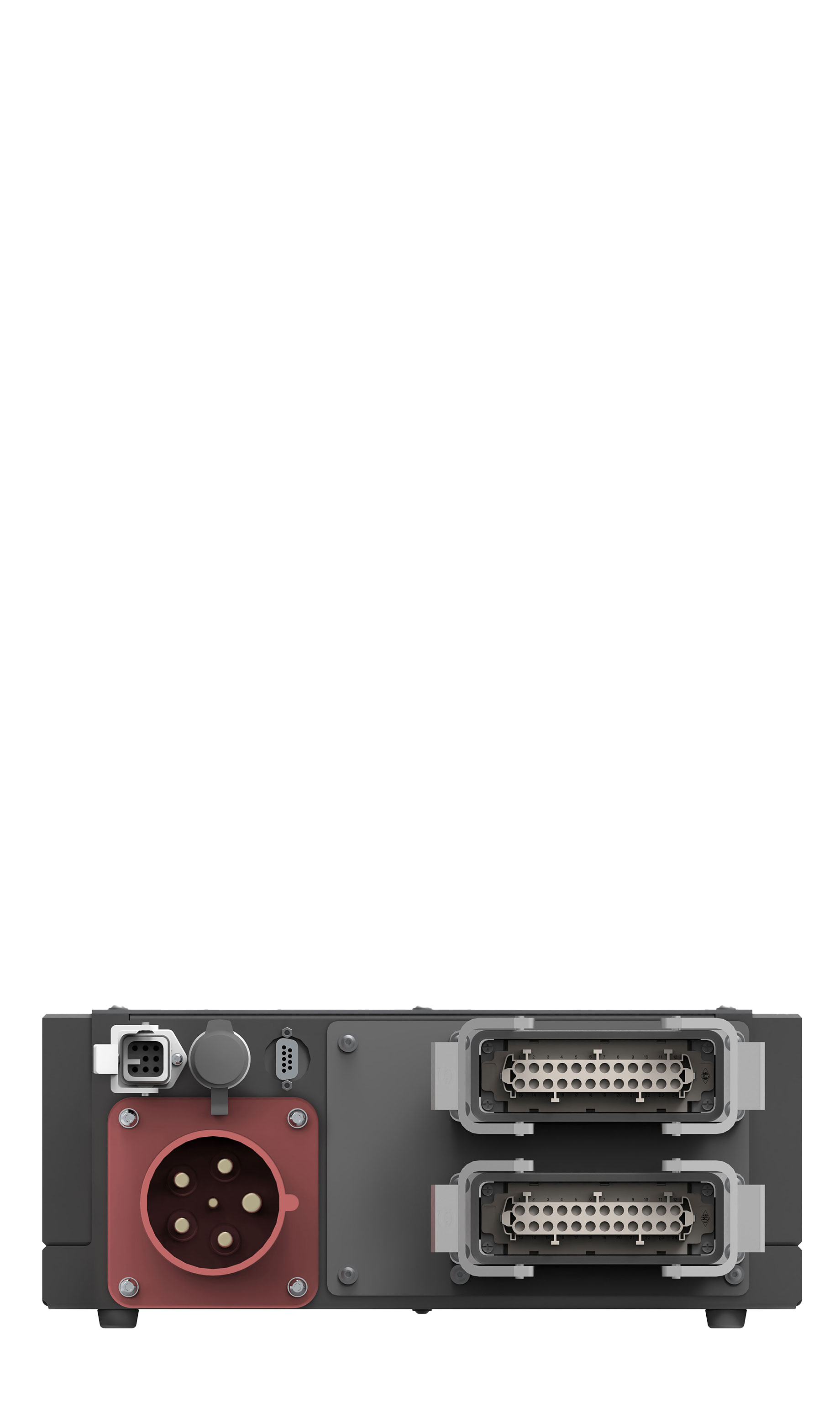

Illustration to understand the basic device structure, colors and plug positions may differ slightly from the original.
Article code
TH12-A32S-P24HQbB
